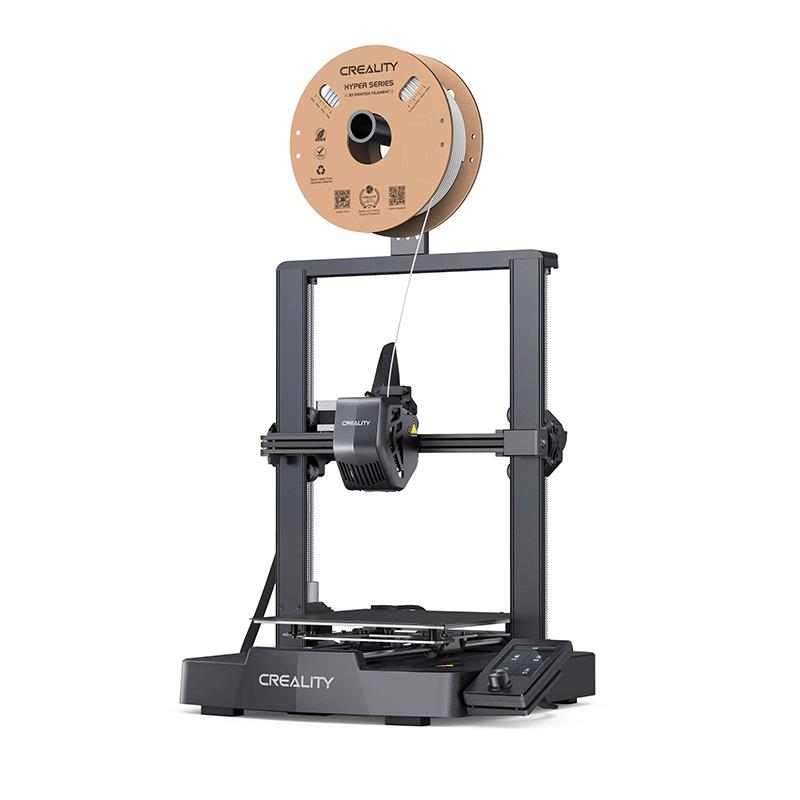

Creality Ender 3 V3 SE

Creality 3Ds latest addition the Ender 3 family is the V3 SE. With a bed size of 220x220x250mm and an average printing speed of 180mm/s (250mm/s max) you can quickly print your models with great results. The machine is equipped with a CR-Touch Auto Levelling Sensor and a Strain Gauge to make levelling and Z-offset calibration a breeze. You will be up and running in no time.

HIGHLIGHTS:

• Y-Axis Linear Shafts
• Dual Z-Axis Screws
• 250mm/s Print Speed
• Sprite Direct Extruder
• CR-Touch and Strain Gauge for the Perfect First Layer

In addition to these features, Creality has also added a pair of linear shafts to the Y-Axis instead of the traditional roller wheels for a more stable and longer lasting motion system. The Sprite Direct Extruder allows you to print various materials including the popular PLA, PET-G and TPU. Following on from previous models, you will also find Dual Z-Axis lead screws that are synchronised by a GT2 timing belt for more accuracy and stability.

CONSTRUCTION & TECHNICAL DETAILS:

• Usable Filament Diameter - 1.75 mm.
• Max Nozzle Temperature - 260 ºC.
• Extruder Type - Direct drive.
• Recommended Printing Speed Max - 250 mm/s.
• Build Area - 220 mm x 220 mm x 250 mm.
• Build Plate Temp Max - 100 ºC.
• Build Plate Surface - Spring steel plate.
• Build Plate Levelling System - Automatic – CRTouch.
• Build Chamber During Process - Open
• Extruder Number Of - 1

INSTALLATION SPACE / REQUIREMENTS:

• Total Mass Overall Dimensions - 349 mm x 364 mm x 490 mm
• Total Weight - 7.12 kg
• Max Power Consumption - 350 W
• Voltage AC - 100 V240 V (50-60 Hz)

EQUIPMENT:

• Hepa Filter - No
• Filament Runout Sensor - Yes
• Power Loss Fail Safe - Yes
• Touch Screen - Yes

CONNECTION

• USB Port - No
• WLAN - No

ACCURACY:

• Layer Height - 1 - 0.35 mm
• Resolution - 1 mm
