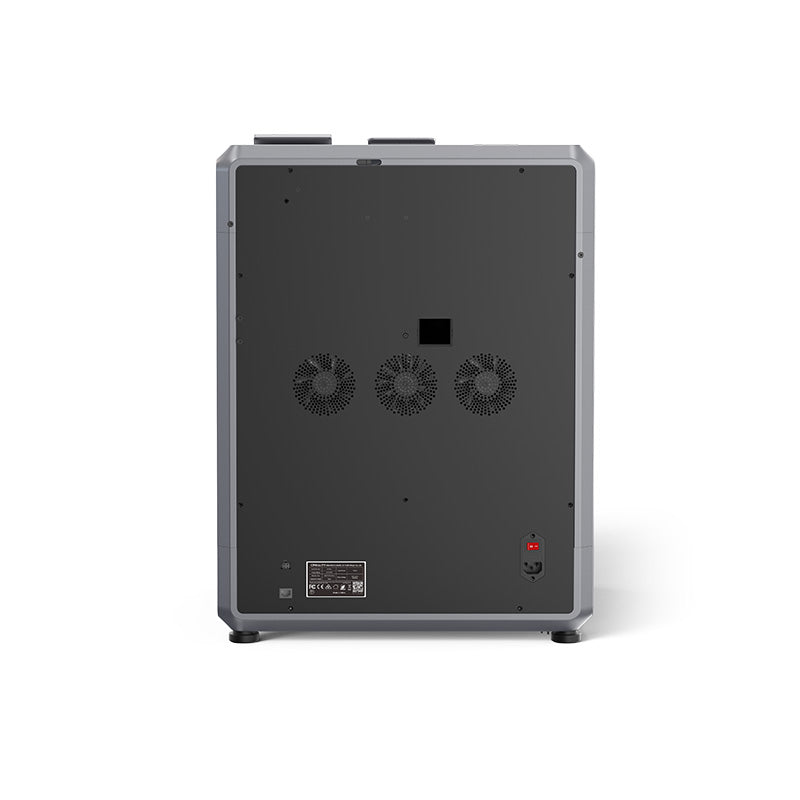

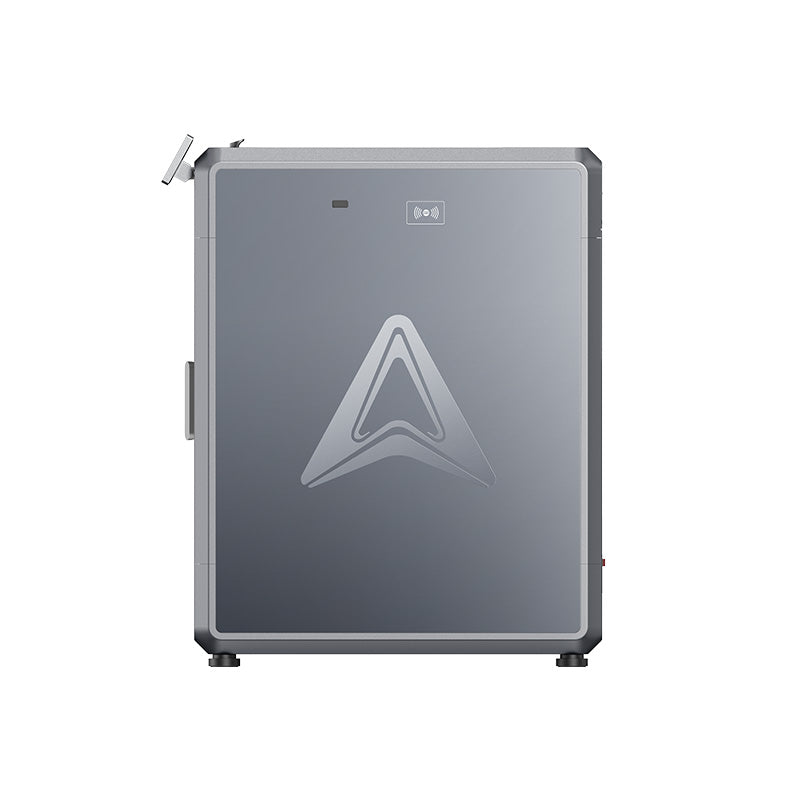

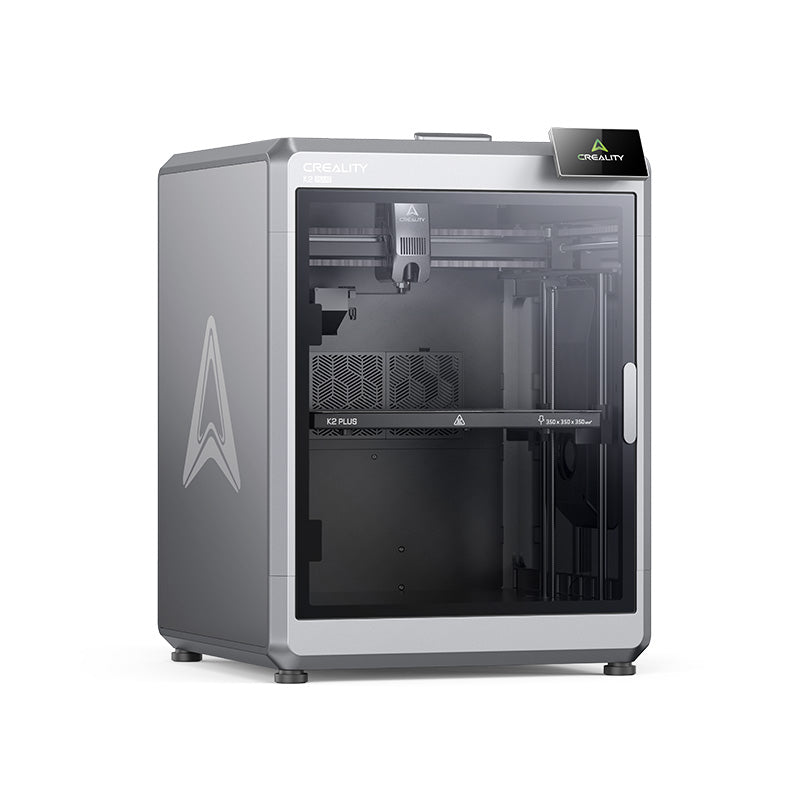

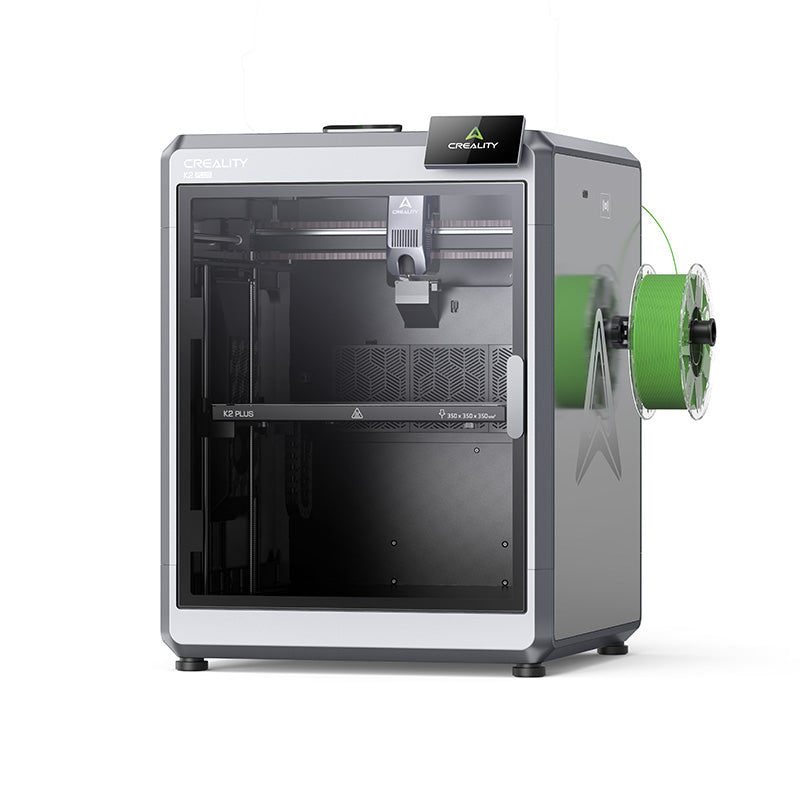

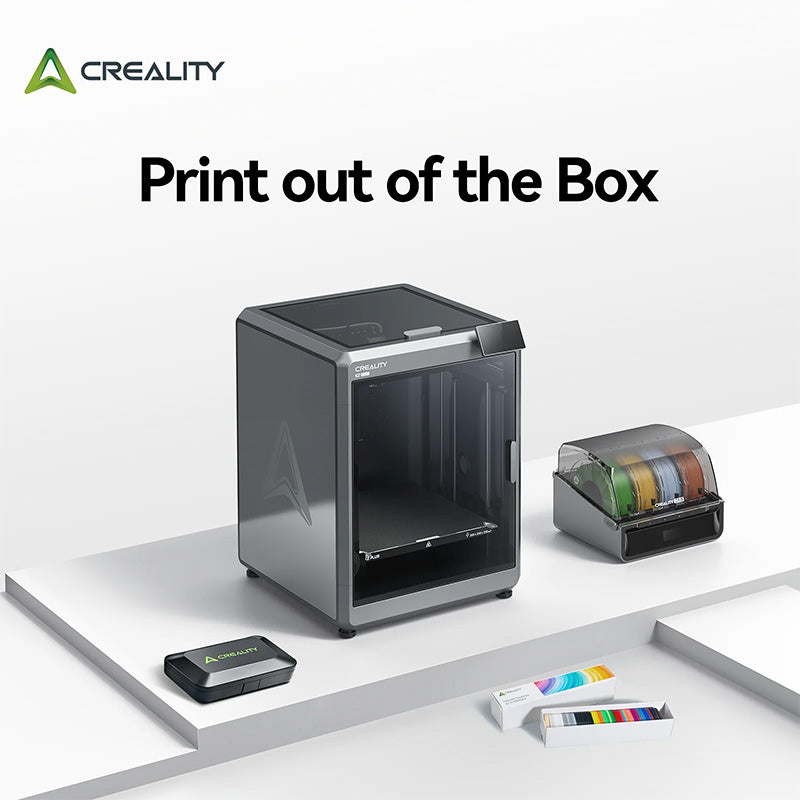

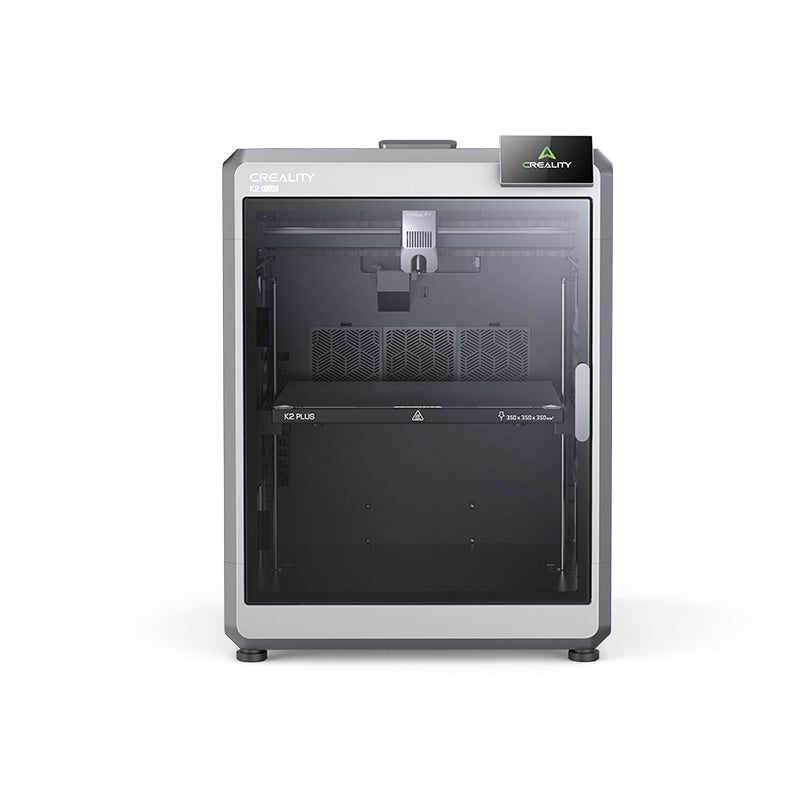

Creality K2 Plus

Unleash your most ambitious 3D printing projects with the Creality K2 Plus, a professional-grade Fused Deposition Modeling (FDM) powerhouse engineered for maximum speed, precision, and versatility. Combining a massive build volume with next-generation multi-color capability and intelligent automation, the K2 Plus is the ultimate tool for engineers, designers, and dedicated creators.

Unleashing Unparalleled Speed and Performance:

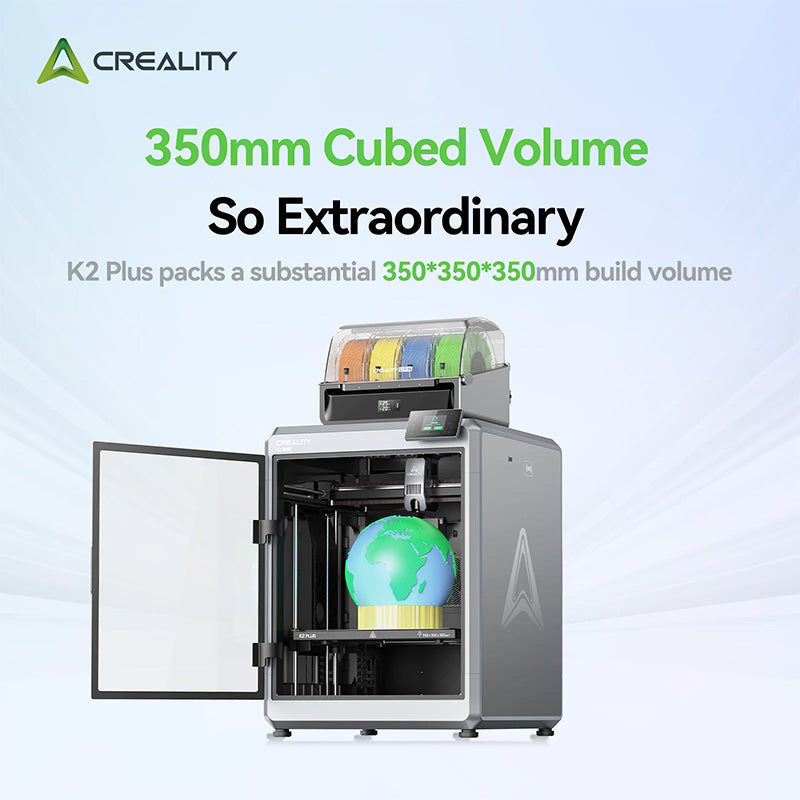

• Substantial 350mm³ Build Volume: Print larger-than-life models, cosplay props, or massive batches of smaller parts in a single run with the generous 350 x 350 x 350 mm build space.

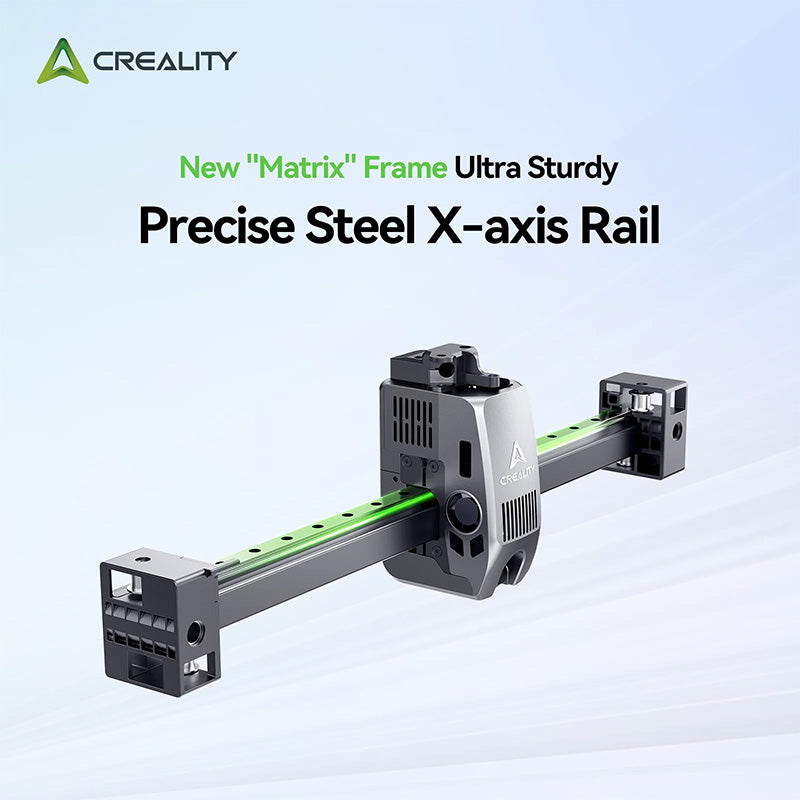

• New "Matrix" Frame, Ultra Sturdy Super Rigid Exoskeleton: Stiff top, base,and side pieces die-cast by tough aerospace-grade aluminum alloy.
• CoreXY Structure and High-Speed Motion System: The first-ever desktop 3D printer adopting industry-grade FOC step-servo motors for the XYZ axis and extrusion. The five powerful motors work in unison, each offering 32,768 controllable microsteps per revolution for ultra precise positioning.
  • Smooth & Responsive
  • Less average load for extended life
  • Minimal heat emmissions reducing failure rate
• Incredibly Quiet, While Printing Hard: By adopting step-servo motors and dynamically balanced fans. It is no louder than someone typing on a laptop PC, truly a creative machine you can work next to. Noise Level at 300mm/s ≤ 45dB.
• Blazing Speed, a New Record: For a large-format machine, 600mm/s is pretty fast, but that's not the whole story. Turbocharged by the step-servo motors, it can accelerate at a staggering 30 000mm/s2.
• Active Belt Tensioning: Timing belts may get loose over time, leading to poor print quality and accuracy. On the K2 Plus, the belt tension is checked and rigged actively by a pressure sensor instead of manually. Now, belt tensioning is a thing you can forget about.
• Automated Filament Cutter & Run-out Sensor: The cutter has a durable steel blade and can be pulled back to position by a magnet, able to sustain constant filament switches. Nearly zero distance from the nozzle. It tells you to replace the filament when only about one inch is left. There will be little waste.
• Strain Gauge for Leveling: Highly sensitive for probing the bed. It makes leveling compensation much more precisie than sensors embedded in the heatbed.
• High-flow Hotend & Clog-free & Quick-swap Nozzle: 100W heater, the flow rate of ABS at 280°C can reach 40mm³/s. The tri-metal nozzle curbs heat creep effectively for minimal clogs, and the integrated nozzle design and the magnetic front cover make thee nozzle swap a breeze.
• Actively Heated Chamber: Creating a thermostatic environment up to 60°C. Essential to forge strong prints in ASA, PPA and other high-end materials. 50°C chamber temperature for PATCH-CF; 60°C chamber tempperature for ABS, ASA and PPS.
• Enhanced Cooling System: The part cooling airflow is nearly doubled as two auxiliary cooling fans are installed on the left and right sides of the chamber. The shapes and styles of your model will be set before any stringing and warping can happen.
• Dual AI Camera: Unrivaled perception with 18 Smart Sensors. The thermal motion, extrusion and leveling systems are all sensorized. So, everything is automated and closely monitored. If any irregular activity is identified the sensors will notify you immediately.
• Vibration Compensation: Integrated vibration compensation algorithms actively counteract resonance, resulting in smoother surfaces and sharper details, even during high-speed printing.
• 16 Colors, Level up Your Creativity: CFS comes with a connection hub on the back. By hooking up as many as four CFS units together, you are able to print in the splendor of 16 colors*. Saves the need for extra painting afterward.

Technical Specifications:

Core Performance and Print Area

• Technology: Fused Deposition Modeling (FDM).
• Build Volume (X×Y×Z): A substantial 350 x  350 x 350 mm.
• Max Printing Speed: Up to 600 mm/s.
• Max Acceleration: 30,000 mm/s.
• Dimensional Accuracy: Print accuracy of 100mm ± 0.1mm.
• Layer Height: Variable from 0.05 - 0.3mm.
• Motion System: Core XY with FOC Step-Servo Motors on all axes (X, Y, Z, E) for high precision and quiet operation (­≥45dB at 300 mm/s).
• Z-Axis: Dual Z-Axis assisted by 4 linear rods for stability.

Extrusion and Material Capability

• Extruder Type: High-flow, Dual-gear Direct Drive Extruder ("Apus" Next-gen).
• Max Nozzle Temperature: ≤ 350℃. The nozzle is a tri-metal type with a hardened steel tip.
• Supported Filaments: Supports a wide range of standard and engineering materials including PLA, ABS, PETG, ASA, PET, PA, PLA-CF, PA-CF, and PPA-CF.
• Heated Chamber: Features an Actively Heated Chamber with a maximum temperature of ≤60℃ to prevent warping.
• Heatbed: Flexible build plate with a maximum temperature of≤120℃.

Multi-Color System (CFS)

• Multi-Color Capability: Achieved via the optional Creality Filament System (CFS) unit.
• CFS Unit Capacity: Each CFS unit holds 4 spools of filament.
• Expansion: Up to 4 CFS units can be connected to the K2 Plus, enabling printing with up to 16 colors simultaneously.
• Filament Management: Includes RFID filament recognition, auto-switching, auto filament relay, and desiccant-based moisture-proof storage (in CFS).

Smart Features and Operation

• Leveling: Full-auto Leveling with Active Bed Tilt Calibration.
• AI Monitoring: Equipped with Dual AI Cameras (one on the toolhead for calibration/flow rate and one on the chamber for monitoring/failure detection).
• Screen: 4.3" inch color touch screen.
• Connectivity: USB Drive, Ethernet, and Dual-band Wi-Fi (2.4GHz / 5GHz).
• Storage: 32 GB EMMC.
• Software: Runs on Klipper-based Creality OS; uses Creality Print 5.0 or newer slicing software.
• Additional Functions: Power loss recovery, Active Belt Tensioning, Air Purifier, Filament Run-out Sensor, and Input Shaping.

Note: The CFS is not compatible with flexible TPU, damp BVOH/PVA or warped cardboard spools.
