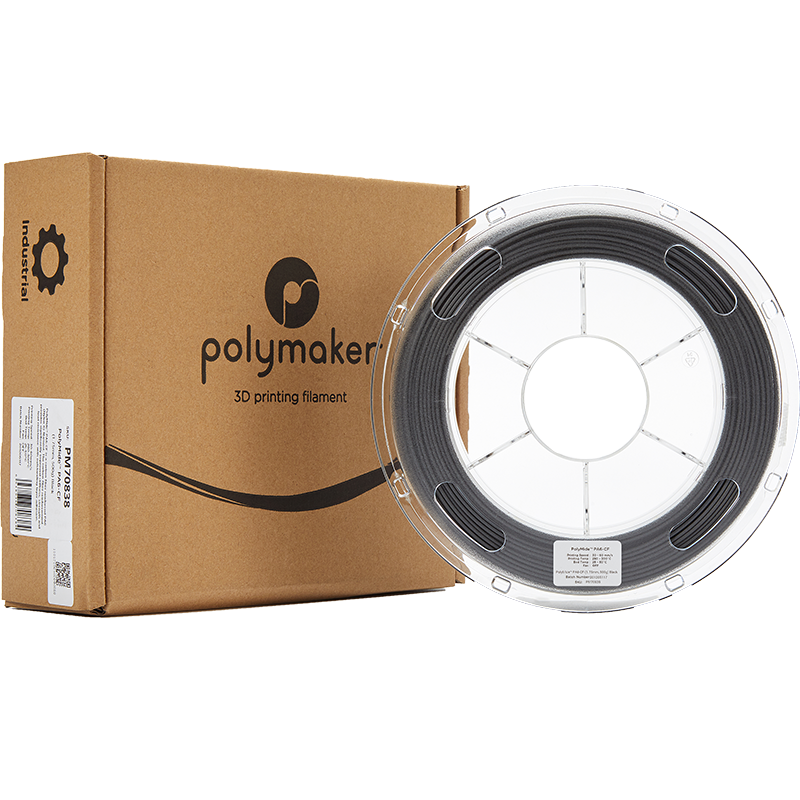

Polymaker PolyMide PA6-CF 1.75mm

PolyMide™ PA6-CF is a 20% carbon fiber reinforced Nylon 6 filament. The carbon fiber reinforcement provides significantly improved stiffness, strength and heat resistance with outstanding layer adhesion thanks to Fiber Adhesion™ Technology. PolyMide™ PA6-CF outperforms almost every 3D printing material, offering extreme durability and functionality while featuring a heat deflection temperature of 215°C.

WHAT IS THE PERCENTAGE OF THE CARBON FIBER CONTENT IN POLYMIDE™ PA6-CF:

It contains 20 wt% carbon fibers.

RECOMMENDED PRINTING CONDITIONS:

• Nozzle temperature - 280 - 300 (°C)
• Build Surface - Material Glass, Garolite, Magigoo PA
• Build surface treatment - Applying PVA glue to the build surface
• Build plate temperature - 25 - 50 (°C)
• Cooling fan Turned - Off
• Printing speed - 60 (mm/s)
• Raft separation distance - 0.1 - 0.2 (mm)
• Retraction distance - 3 - 6 (mm)
• Retraction speed - 40 - 60 (mm/s)
• Recommended environmental temperature - 25 - 50 (°C)
• Threshold overhang angle - 45 (°)
• Recommended support material - PolyDissolve™ S1

Based on 0.4 mm nozzle and Simplify 3D v.3.1. Printing conditions may vary with different nozzle diameters.

Note:

• Based on 0.4 mm nozzle and Simplify 3D v.3.1. Printing conditions may vary with different nozzle diameters.
• Abrasion of the copper nozzle happens quite often when printing PolyMide™ PA6-GF. Normally, the life of a copper nozzle
• would be approximately 9h. A wear-resistance nozzle, such as hardened steel and ruby nozzle, is highly recommended to be used with PolyMide™ PA6-GF.
• PolyMide™ PA6-GF is sensitive to moisture and should always be stored and used under dry conditions (relative humidity below 20%).
• If PolyMide™ PA6-GF is used as the support material for itself, please remove the support structure before excessive moisture absorption. Otherwise, the support structure can be permanently bonded to the model.
• After the printing process, it is recommended to anneal the model in the oven at 80 - 100°C for 1 - 3 hours.

Making 3D Possible!

• PolyMide_ PA6-CF_TDS_EN_V4
• PolyMide_PA6-CF_PIS_EN_V1.2
