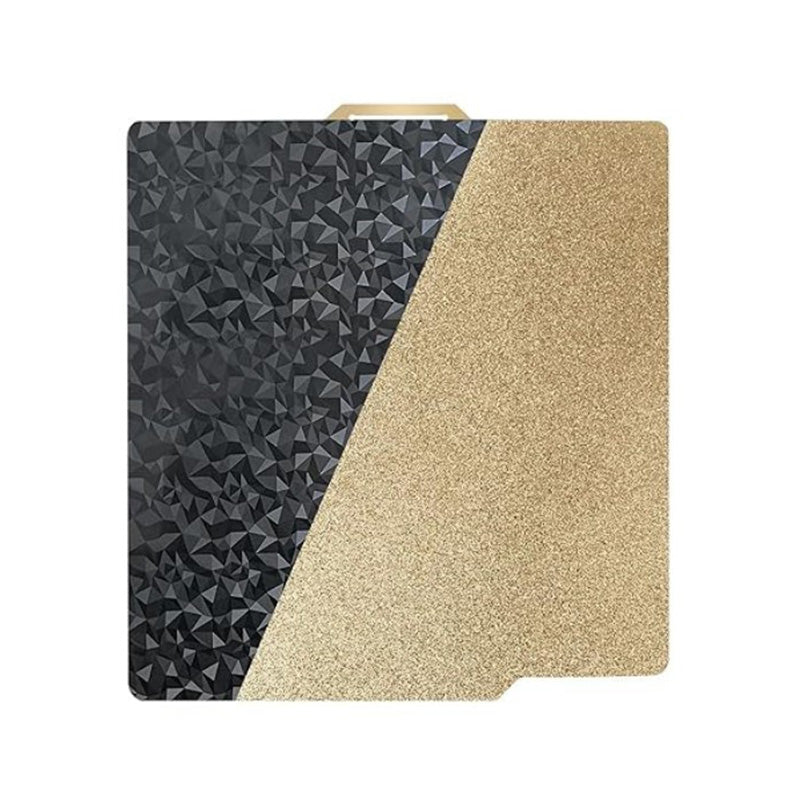

Double-sided build plate showing smooth mosaic PEO and gold textured PEI for Bambu Lab

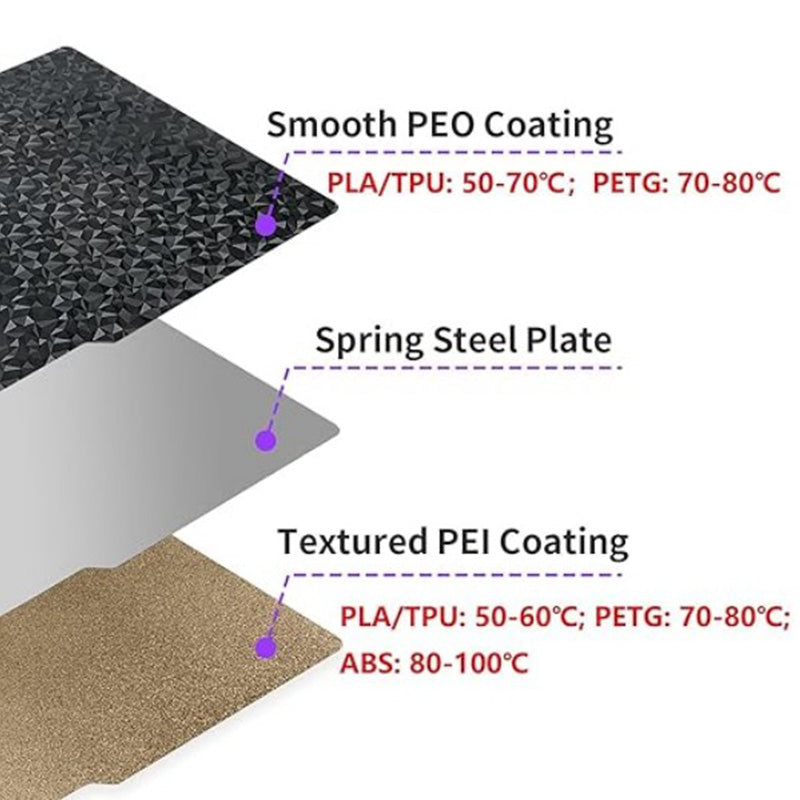

Multilayer structure diagram showing smooth PEO coating, spring steel plate, and textured PEI coating

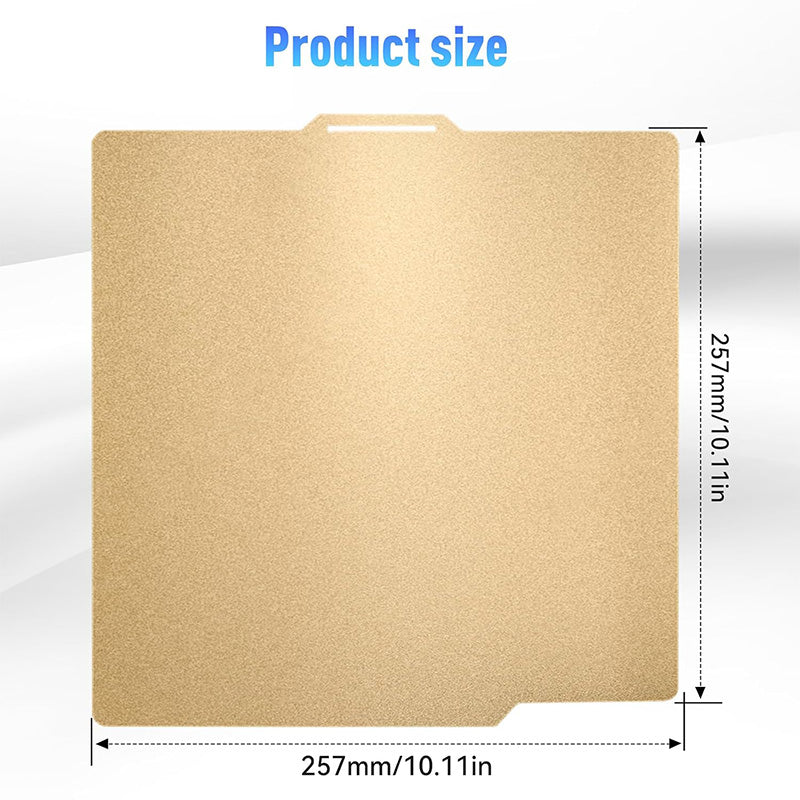

257mm x 257mm size dimensions diagram for Bambu Lab PEI and PEO build plate

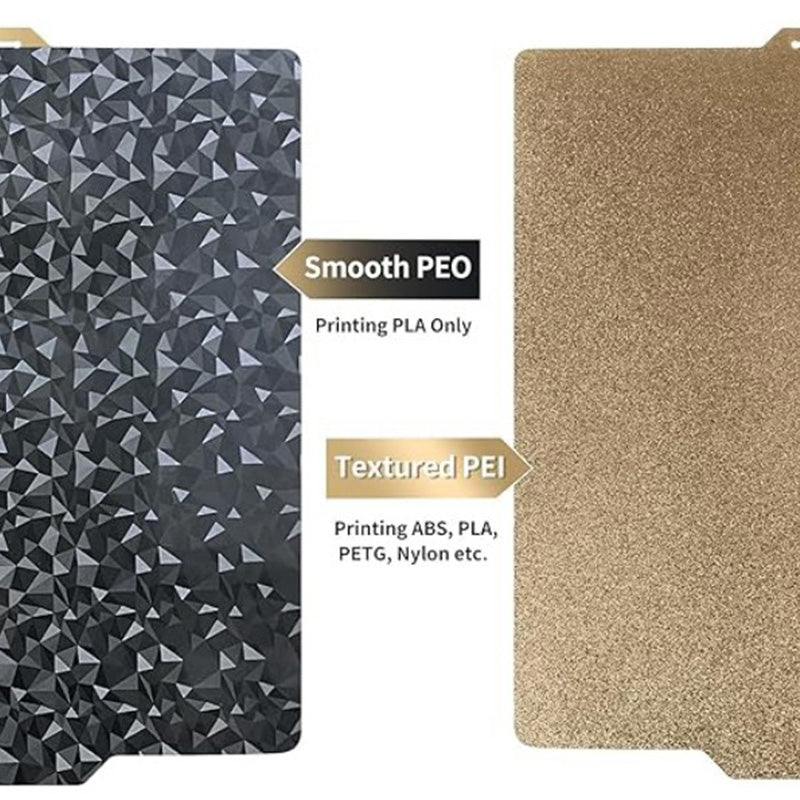

Side-by-side comparison of smooth PEO mosaic side and gold textured PEI side

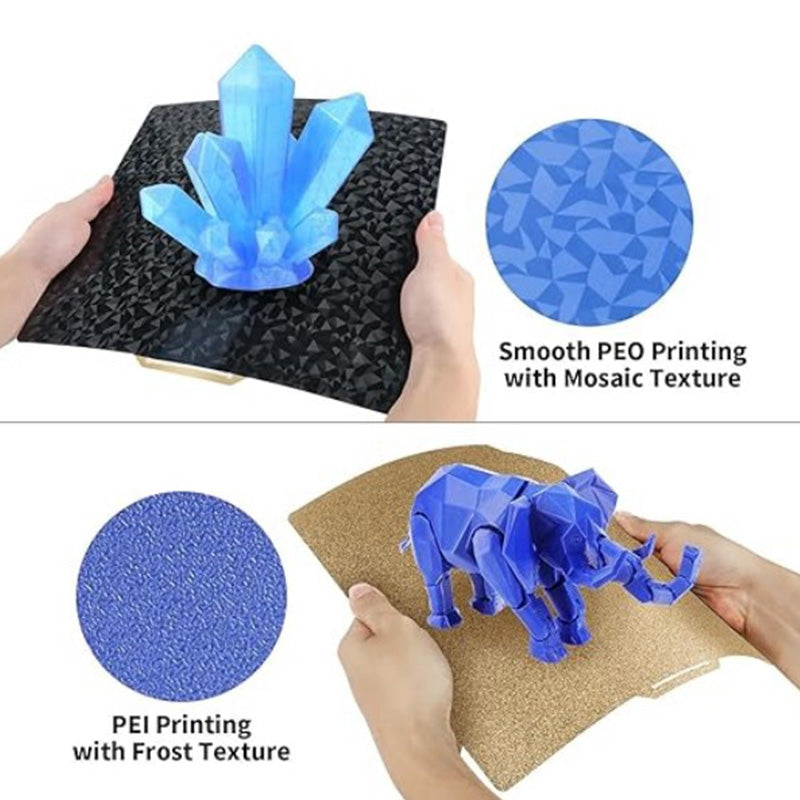

Flexing spring steel build plate to show 3D printed model removal on PEO and PEI surfaces

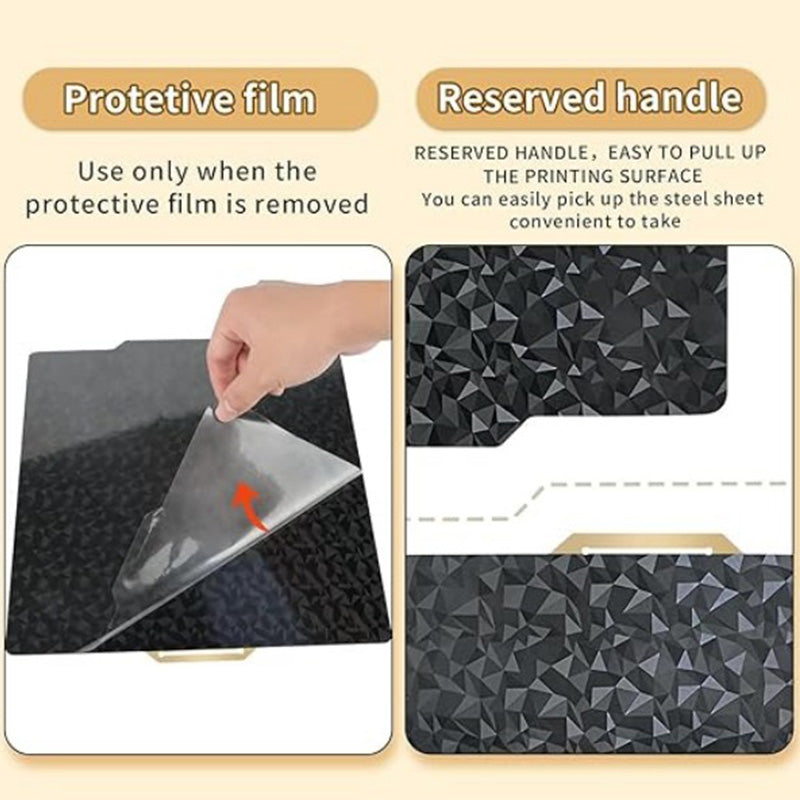

Removing protective film from smooth PEO surface on spring steel build plate

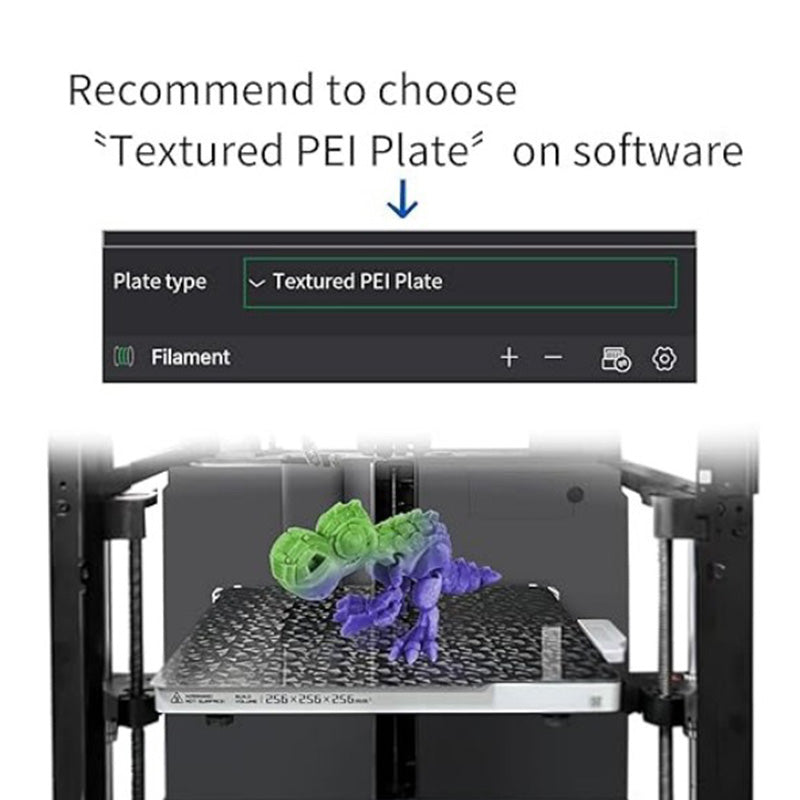

ambu Studio software setting recommendation choosing Textured PEI Plate for print setup

3DACC

Double-Sided Textured PEI & Smooth PEO Build Plate - Bambu Lab X1 / P1 / A1

€24,95

Price shown includes 21% VAT. - Excludes delivery costs.

SKU: XCBP25045 EAN: EC3D-3DACC-XCBP25045
Quantity:

We have 10 in stock.
Delivery in 1-2 days.
Click & Collect in-store

Double-Sided Textured PEI & Smooth PEO Build Plate - Bambu Lab X1 / P1 / A1

EC3D Shop - Maarssen, Utrecht

Pickup Available - usually ready in 2 hours

Address:
Gagledijk 2, Unit B2
3602 AL, Maarssen, Utrecht

Contact details:
Telephone: +31 (0)6 2914 7428
Email: info@ec3d.nl

Trading Hours:
Monday - Friday: 09:00 - 17:00
Saturday & Public Holidays: 10:00 - 15:00
Sunday: Closed
American Express Apple Pay Bancontact Bizum BLIK Google Pay iDEAL Wero Klarna Maestro Mastercard MB WAY MobilePay Satispay Shop Pay Union Pay Visa

Double-Sided Textured PEI & Smooth PEO Build Plate - Bambu Lab X1 / P1 / A1 (257x257mm)

Add versatility and a unique surface finish to your 3D prints with this premium double-sided build plate, designed specifically for Bambu Lab 257×257mm 3D printers (X1, P1, and A1 series). One side features a classic gold Textured PEI coating for maximum adhesion and a frosted finish. The reverse side features a smooth PEO coating that transfers a striking geometric mosaic pattern directly onto the bottom of your printed models.

KEY FEATURES:

  1. Dual-Sided Print Surface: Effortlessly switch between the rugged grip of Textured PEI and the sleek mosaic design of Smooth PEO.

  2. Unique PEO Mosaic Finish: The smooth PEO side leaves a glossy geometric pattern on the bottom surface of PLA, PETG, and TPU prints.

  3. Flexible Spring Steel Core: Built with high-grade ferromagnetic spring steel. Once the bed cools down, simply flex the plate to pop models off effortlessly.

  4. Glue-Free Adhesion: Delivers excellent thermal adhesion across standard filaments without needing glue sticks.

  5. Precision Bambu Lab Fit: Engineered with exact dimensions (257x257 mm) and native alignment cutouts for seamless automatic bed leveling.

TECHNICAL SPECIFICATIONS:

  • Model / Variant: Double-Sided Textured PEI + Smooth PEO Sheet
  • Compatibility: Bambu Lab X1 Series (X1 / X1C / X1E), P1 Series (P1P / P1S), A1
  • Base Material: Ferromagnetic Spring Steel Core
  • Surface Finish: Side A: Textured PEI / Side B: Smooth PEO (Mosaic Pattern)
  • Dimensions: 257 x 257 mm

BED TEMPERATURE & FILAMENTS:

PEO Side (Smooth Mosaic):

  • PLA / TPU: 50°C – 70°C
  • PETG: 70°C – 80°C

PEI Side (Textured Gold):

  • PLA / TPU: 50°C – 60°C
  • PETG: 70°C – 80°C
  • ABS: 80°C – 100°C

SUPPORTED FILAMENTS:

PLA, TPU, PETG, ABS

MAINTENANCE:

Peel off the clear protective film from the PEO side before your first print. Clean regularly with warm water and standard dish soap. Between prints, wipe down with high-purity Isopropyl Alcohol (IPA >90%) and a microfiber cloth to keep the surface oils clean and preserve the mosaic effect.

PRO TIP:

In Bambu Studio or OrcaSlicer, select "Textured PEI Plate" as your default profile to ensure the correct nozzle height offset!
