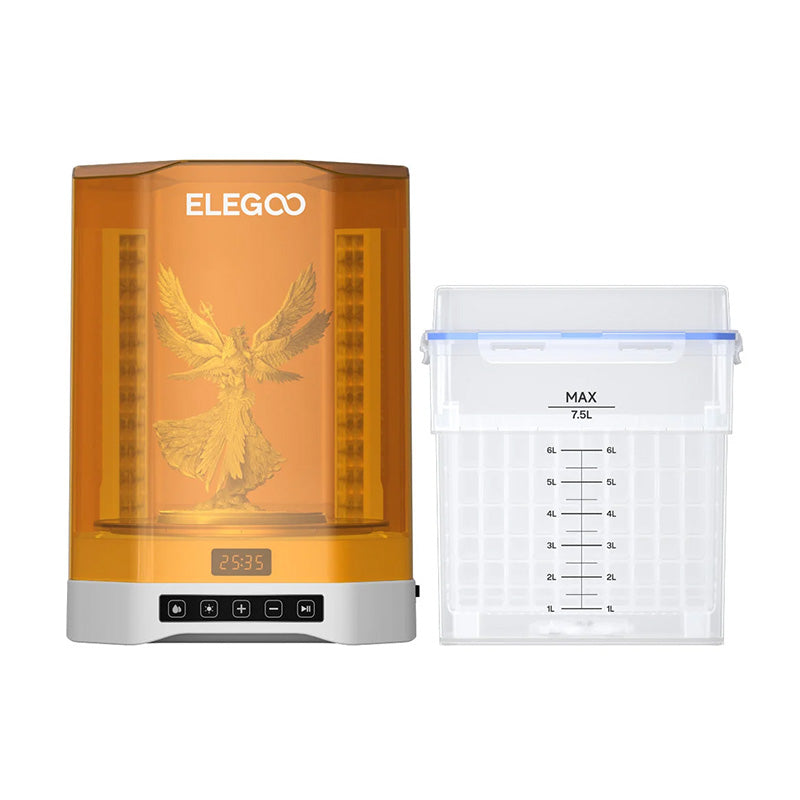

Front view comparison of the Elegoo Mercury Plus V3.0 station and its wash bucket. The main unit shows the orange anti-UV cover, the touch control panel with the timer set to 25:35, and a cured golden winged angel model inside. Beside it is the empty 7.5L transparent wash bucket with a blue seal and volume markings.

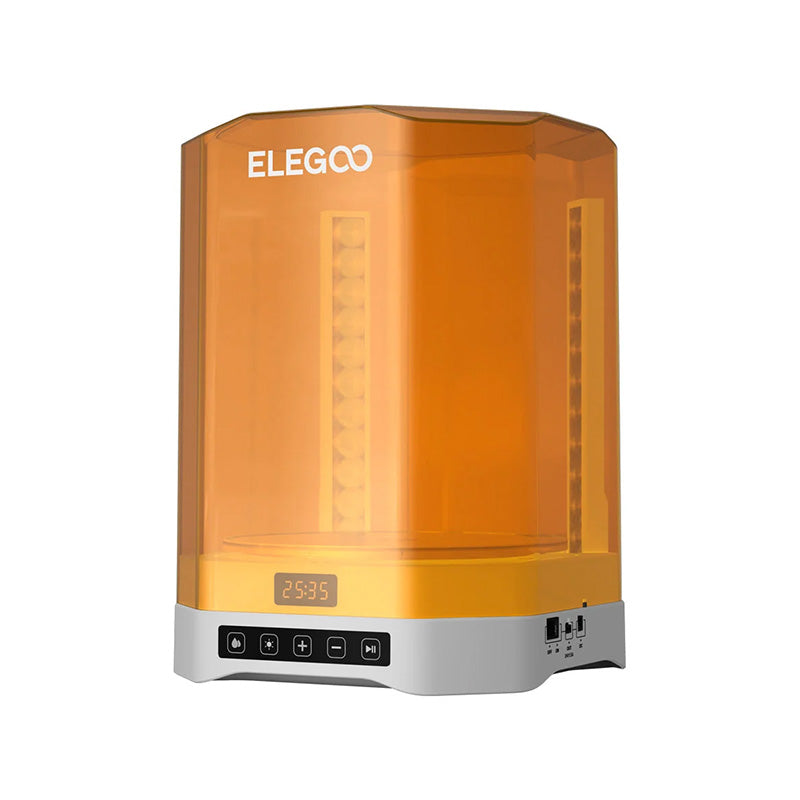

A three-quarter front view from the right of the Elegoo Mercury Plus V3.0 Wash & Cure station. The orange anti-UV cover is sealed on the light gray base. The touch control panel and timer display (25:35) are visible on the front, and the power input and side connection ports are visible on the lower right side.

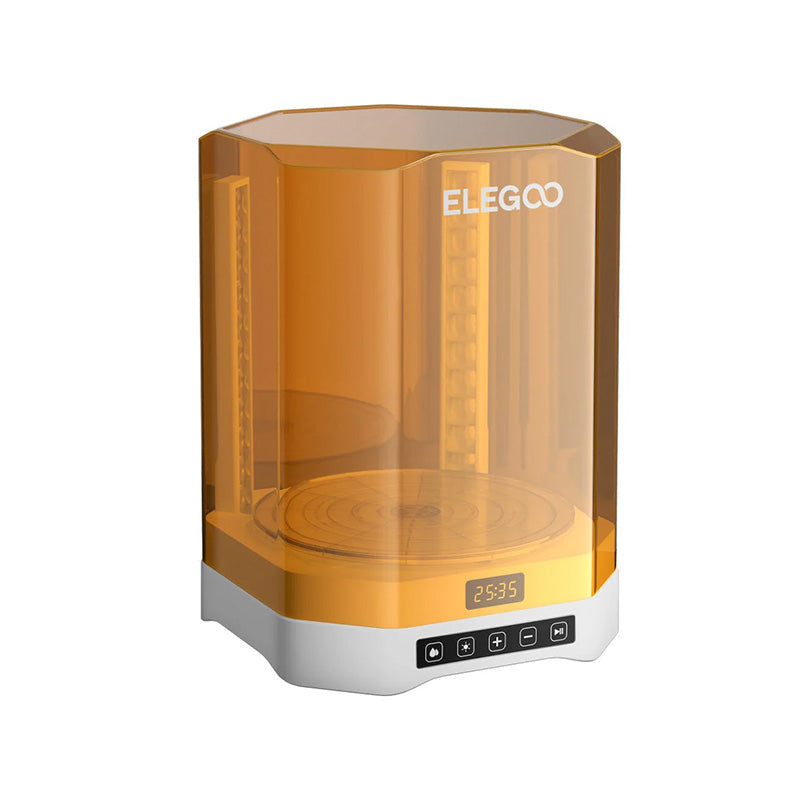

Isometric view showing the interior and structure of the Elegoo Mercury Plus V3.0 base. The hexagonal transparent orange cover reveals the two vertical UV light arrays, the central rotating curing turntable, and the inner reflective base. The front touch panel is centered with the timer at 25:35.

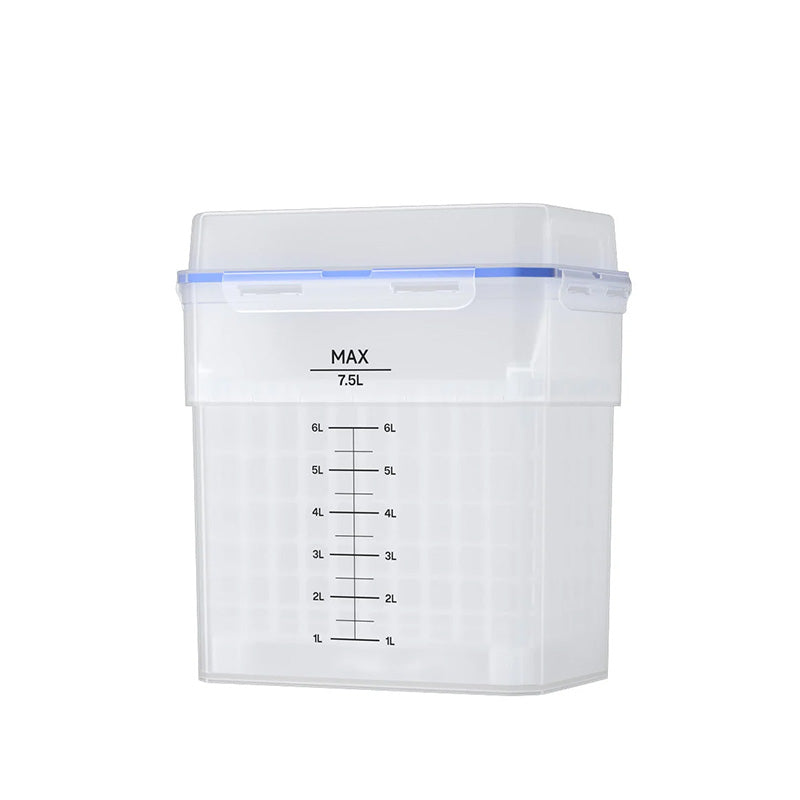

Front view of the transparent 7.5L capacity washing bucket for the Elegoo Mercury Plus V3.0. The bucket features clear measurement markings from 1L to 6L, a prominent MAX 7.5L fill line, and a blue sealing ring around the lid. The internal cleaning grid is visible.

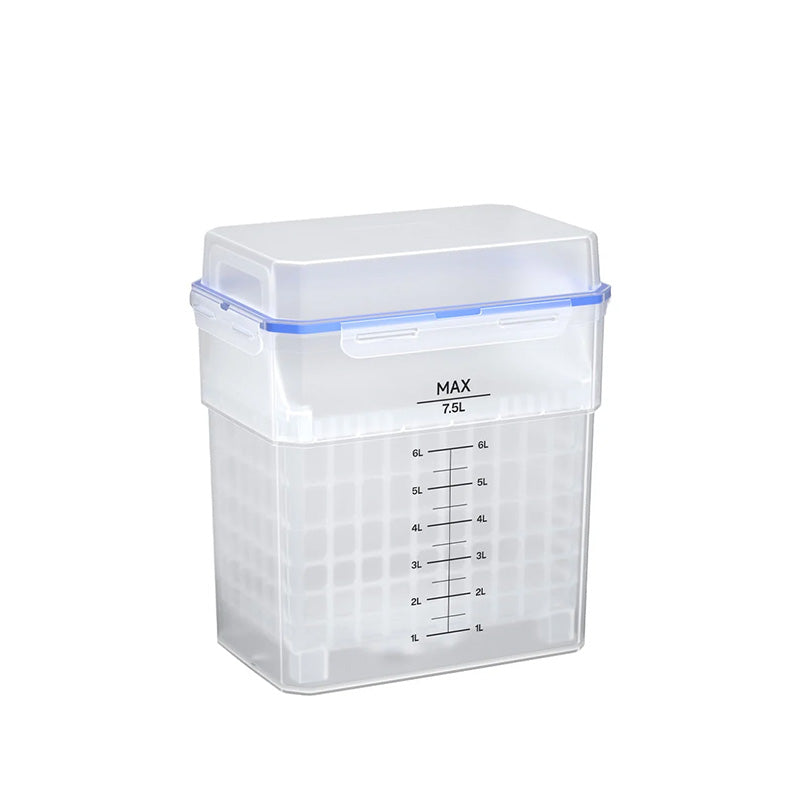

An isometric top-down view of the transparent 7.5L wash bucket for the Elegoo Mercury Plus V3.0. The perspective highlights the volume markings (1L to MAX 7.5L), the blue lid seal, and the internal structure of the grid base.

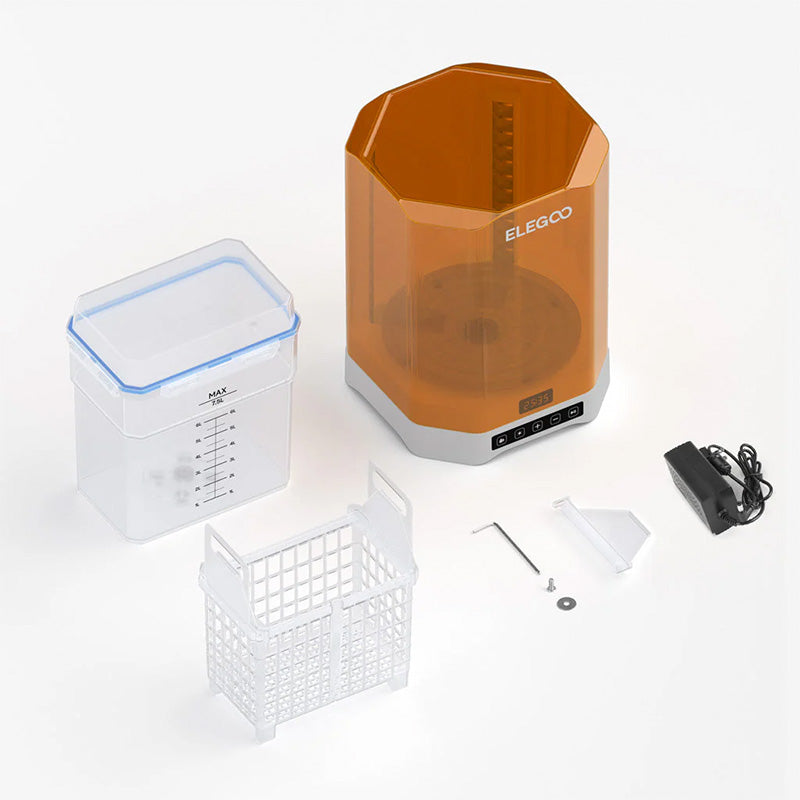

Top-down 'What's in the Box' overview for the Elegoo Mercury Plus V3.0. Laid out are the main machine base with the orange cover (displaying 25:35), the 7.5L wash bucket, the removable wash basket, the build plate suspension bracket, a hex key and screw, and the power adapter.

Elegoo

Elegoo Mercury Plus V3.0

€139,00 €211,00
Sold out

Price shown includes 21% VAT. - Excludes delivery costs.

SKU: 50.101.059300 EAN: 6932704902325

Product is out of stock.
Delivery in 1-2 days.
Click & Collect in-store

Elegoo Mercury Plus V3.0

EC3D Shop - Maarssen, Utrecht

Pickup Available - usually ready in 2 hours

Address:
Gagledijk 2, Unit B2
3602 AL, Maarssen, Utrecht

Contact details:
Telephone: +31 (0)6 2914 7428
Email: info@ec3d.nl

Trading Hours:
Monday - Friday: 09:00 - 17:00
Saturday & Public Holidays: 10:00 - 15:00
Sunday: Closed
American Express Apple Pay Bancontact BLIK Google Pay iDEAL Wero Klarna Maestro Mastercard MobilePay Shop Pay Union Pay USDC Visa

Elegoo Mercury Plus V3.0 Wash & Cure Station

Take your resin post-processing workflow to the next level with the Elegoo Mercury Plus V3.0. Designed as a 2-in-1 washing and curing solution, the V3.0 brings expanded capacity, improved fluid dynamics, and 360° uniform UV curing into a single, space-efficient unit. Whether you are handling large single prints or high-volume batches, the Mercury Plus V3.0 ensures clean, crisp details and optimal mechanical strength every time.

Key Features:

  • Upgraded Working Capacity: Features a massive 7.5L cleaning bucket—a 114% increase over the V2.0—and a 460% larger curing zone, allowing you to process larger models or multiple parts simultaneously.
  • Dual-Mode Cleaning:
    • Basket Mode: Clean loose models directly in the basket with a maximum wash volume of 230 × 135 × 260 mm.
    • Hanging Mode: Keep prints attached to build plates up to 10 inches using two adjustable support brackets, accommodating volumes up to 214 × 135 × 180 mm.
  • Enhanced Washing Mechanism: Built with a high-durability POM (polyoxymethylene) bearing for smoother rotation and stronger liquid vortexing, removing uncured resin from tight geometries with minimal noise.
  • 360° Uniform UV Curing: Powered by 24 UV LED lamps (405nm) paired with reflective bottom mirrors and a transparent rotating turntable to deliver complete top-to-bottom light coverage without shadow spots.
  • Intuitive Touch Control: Easily select wash or cure modes and set precise processing times from 0 to 30 minutes via the clean touch-panel display.
  • Built-in Safety Protections: The tinted anti-UV cover blocks up to 99.9% of UV light, while an integrated safety microswitch automatically pauses curing if the cover is removed during operation.

Technical Specifications:

  • Machine Type: 2-in-1 Wash & Cure Post-Processing Station
  • Control Method: Touch Button Display Panel
  • Timer Range: 0 to 30 minutes
  • Bucket Capacity: 7.5 Liters
  • Max Wash Volume (Basket Mode): 230 x 135 x 260 mm
  • Max Wash Volume (Hanging / Build Plate Mode): 214 x 135 x 180 mm
  • Max Curing Size (Diameter x Height): 250 x 290 mm
  • UV Light Source: 24 UV LEDs (405nm Wavelength) .
  • Rated Power: 60W
  • Power Supply: 100-240V AC, 50/60Hz (Output: 24V 2.5A)

Printer Compatibility:

Fully compatible with Mars series (all models), Saturn series (all models including Saturn 4), and similar SLA/LCD/DLP printers up to 10-inch build plates.
