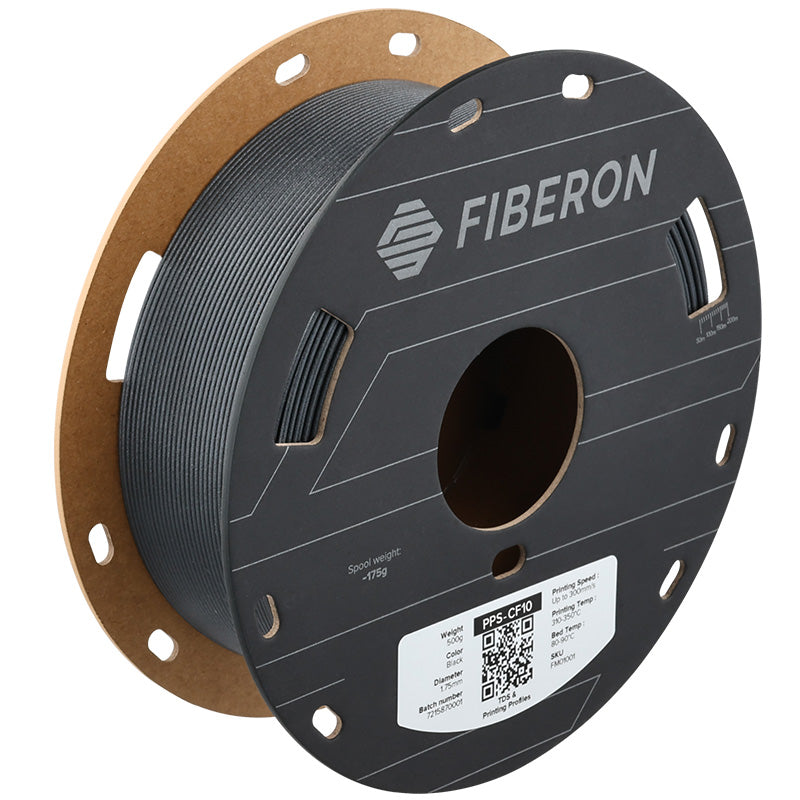

Fiberon PPS-CF10

Polymaker Fiberon™ PPS-CF10 Black is a carbon fiber reinforced PPS (polyphenylene sulfide) filament engineered for professionals and makers seeking exceptional performance in their 3D printed parts. This advanced material offers a unique combination of properties that make it ideal for demanding applications in aerospace, automotive, electronics, and industrial manufacturing.

Key Features:

• Extreme Strength and Stiffness: Carbon fiber reinforcement provides exceptional tensile strength, flexural modulus, and impact resistance, surpassing many other high-performance polymers.
• High Heat Resistance: With a heat deflection temperature (HDT) exceeding 250°C, Fiberon™ PPS-CF10 Black maintains its mechanical properties even at elevated temperatures.
• Excellent Chemical Resistance: This filament exhibits outstanding resistance to a wide range of chemicals, including acids, alkalis, fuels, and solvents, making it suitable for harsh environments.
• Dimensional Stability: Minimal warping and shrinkage during printing ensure high accuracy and precision in the final part.   Flame Retardant: Fiberon™ PPS-CF10 Black meets the UL94 V0 standard for flammability, making it a safe choice for demanding applications.
• Moisture Insensitive: This filament is not affected by moisture, allowing for easy printing and storage without the need for special precautions.

Applications:

• Aerospace: Lightweight yet strong components for drones, aircraft interiors, and tooling.
• Automotive: Under-the-hood components, brackets, housings, and functional prototypes.
• Electronics: Heat sinks, electrical enclosures, and high-performance circuit boards.
• Industrial Manufacturing: Jigs, fixtures, tooling, and end-use parts for demanding environments.

Note:

• Abrasion of the brass nozzle happens frequently when printing Fiberon™ PA12-CF10. Normally, the life of a brass nozzle would be approximately 9h. A wear-resistance nozzle, such as hardened steel and ruby nozzle, is highly recommended to be used with Fiberon™ PA12-CF10.
• Fiberon™ PA12-CF10 is sensitive to moisture and should always be stored and used under dry conditions (relative humidity below 20%).
• If Fiberon™ PA12-CF10 is used as the support material for itself, please remove the support structure before excessive moisture absorption. Otherwise, the  support structure can be permanently bonded to the model.
• After the printing process, it is recommended to anneal the model in the oven at 100°C for 16 hours.

Polymaker Fiberon™ PPS-CF10 Black empowers you to create high-performance 3D printed parts that can withstand extreme conditions. Its unique combination of strength, heat resistance, chemical resistance, and dimensional stability makes it the ideal choice for professionals and makers seeking the very best in 3D printing materials.

Making 3D Possible!

• Technical Data Sheet FIBERON PPS-CF10 V1.0 EN
