Flashforge AD5M / AD5M Pro / AD5X Flexible Build Plate

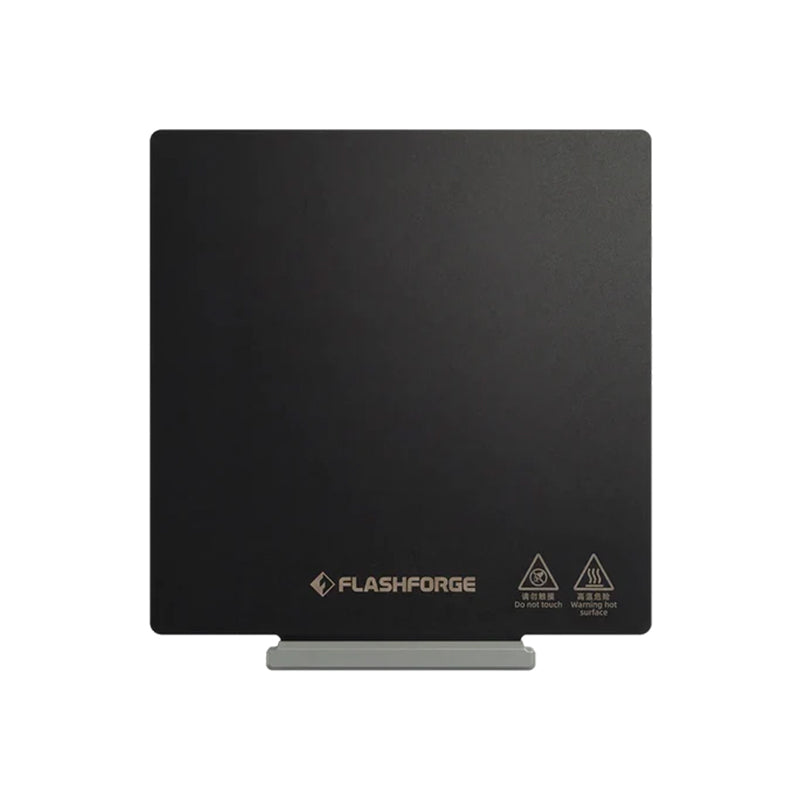

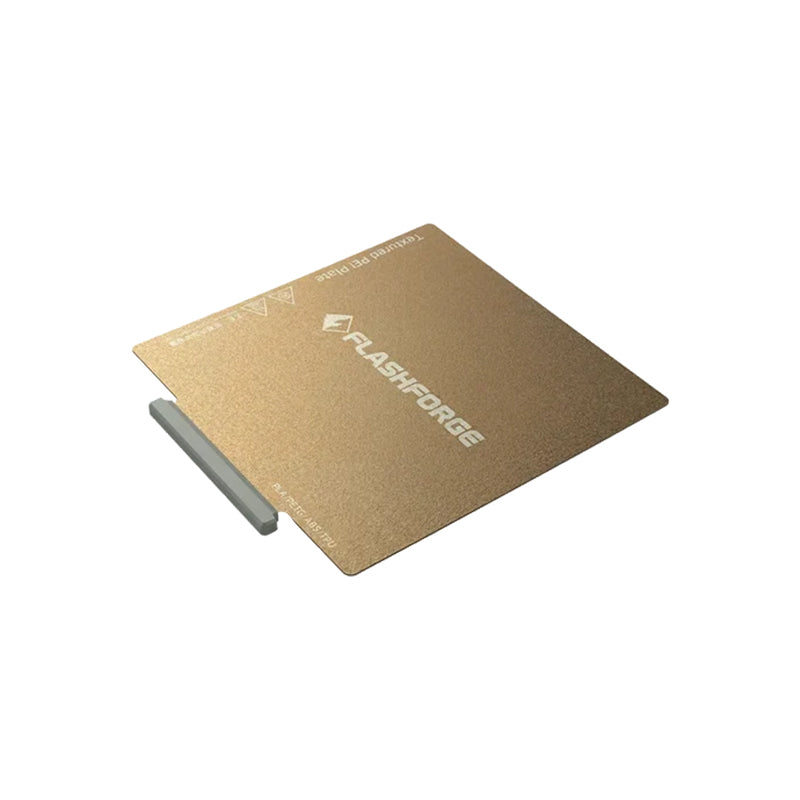

The official Flashforge Flexible Build Plate is a double-sided replacement print platform engineered specifically for the Adventurer 5M (AD5M), Adventurer 5M Pro (AD5M Pro), and AD5X 3D printers. Built with a spring steel core and dual coating options, it delivers reliable first-layer adhesion, exceptional wear resistance, and effortless part removal through simple bending.
Key Features:
-
Dual-Sided Surface Finish: Features a Textured PEI (Polyetherimide) surface on one side for matte bottom textures and high adhesion, and a Smooth PEI or PEO surface on the reverse side for glass-smooth bottom finishes.
-
Flexible Spring Steel Core: Constructed from high-tensile spring steel that bends easily without warping, allowing prints to pop off instantly once cooled.
-
High-Temperature Resistance: Rated for bed temperatures up to 120°C, ensuring stable performance across standard and engineering-grade filaments.
-
Strong Magnetic Adhesion: Directly compatible with the factory-installed magnetic heatbed base, maintaining precise position lock during high-speed printing.
-
Universal Model Compatibility: Engineered to fit the exact build dimensions and alignment notches of the AD5M, AD5M Pro, and AD5X bed plates.
Specifications:
- Compatible Models: Flashforge Adventurer 5M, Adventurer 5M Pro, AD5X
- Plate Dimensions: 235 x 235 mm (Print Area: 220 x 220 mm)
- Core Material: High-tensile Spring Steel Sheet
- Coating Types: Textured PEI (Side A) / Smooth PEI or PEO (Side B)
- Max Bed Temperature: 120°C
- Compatible Filaments: PLA, PETG, ABS, ASA, TPU, PC, PETG-CF
Surface Care Guide:
- Cleaning: Clean the surface regularly with 90%+ Isopropyl Alcohol (IPA) and a lint-free microfiber cloth to remove oils and finger prints.
- Dish Soap Wash: If adhesion drops, wash the plate with warm water and standard unscented dish soap using a soft sponge, then dry completely.
- No Harsh Scrapers: Avoid using sharp metal scrapers on PEI surfaces to prevent gouging the coating.
