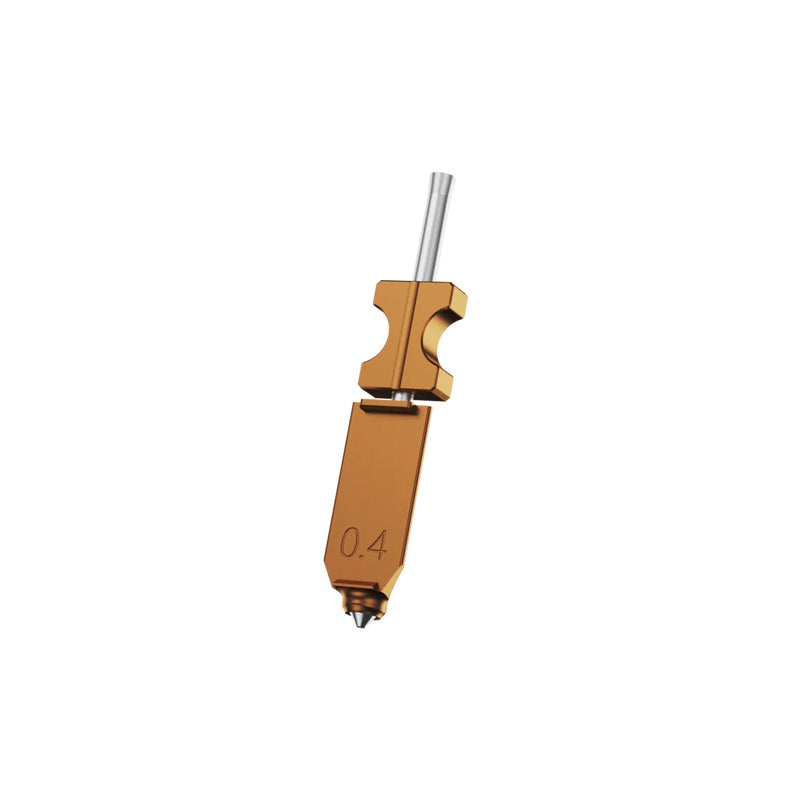

Flashforge AD5X 0.4mm Nozzle Assembly

Flashforge AD5X 0.4mm Nozzle Assembly

The standalone Flashforge AD5X 0.4mm Nozzle Assembly is the standard factory replacement unit designed for everyday, general-purpose FDM 3D printing. Featuring an integrated hotend design and a quick-swap mechanism, it offers an optimal balance between print speed and fine detail for standard materials like PLA, PETG, ABS, and ASA.

Key Features:

• 3-Second Tool-Free Swap: Patented push-and-click quick-release system allows swapping nozzle units instantly without extra tools or risk of wiring damage.
• All-in-One Integrated Structure: Unifies the metal heatbreak, heating block, and heatsink to prevent filament leakage and mechanical alignment issues.
• Balanced High-Speed Performance: High volumetric flow design supporting up to 32 mm³/s extrusion and rapid preheating to 200°C in roughly 35 seconds.
• Standard 0.4mm Precision: Optimized aperture size for general-purpose 3D printing - ideal for achieving smooth surface finishes while keeping print times fast.

Specifications:

• Printer Compatibility: Flashforge AD5X, Adventurer 5M, and Adventurer 5M Pro Series
• Nozzle Diameter: 0.4 mm
• Nozzle Construction: Brass Alloy Body with Stainless Steel Tip
• Maximum Hotend Temperature: 280°C
• Maximum Volumetric Flow Rate: Up to 32 mm³/s
• Heating Performance: Reaches 200°C in 35 seconds
• Filament Compatibility: PLA, PETG, ABS, ASA, TPU
