Flashforge AD5X 4-in-1-Out Filament Guide Tube

Flashforge AD5X 4-in-1-Out Filament Guide Tube

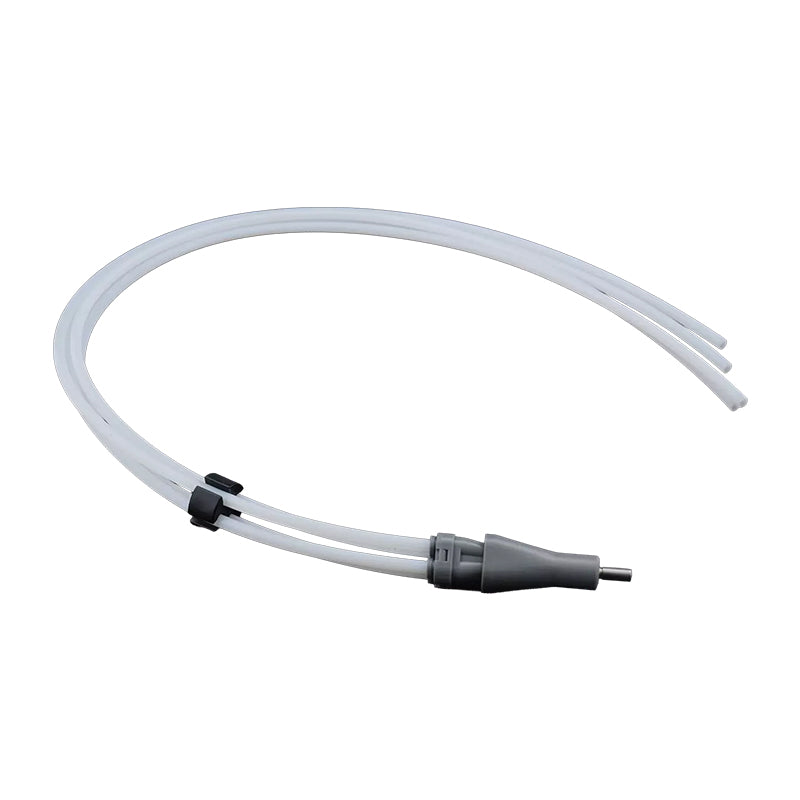

The official Flashforge 4-in-1-Out Filament Guide Tube assembly is a multi-material feed component engineered specifically for the Flashforge AD5X 3D printer. Designed to connect the multi-spool dry box setup to the printing head, this pneumatic tubing harness channels four individual filament lines into a unified output path, enabling automatic color swapping and material changes without manual intervention or filament binding.

Key Features:

• Multi-Channel Feeder Integration: Bundles four independent 4 mm PTFE input tubes into a single multi-inlet splitter block, allowing the printer's Internal Filament Switcher (IFS) to toggle smoothly between four spools.
• Low-Friction Fluoropolymer (PTFE): Manufactured from high-grade PTFE material with smooth internal walls to minimize friction, ensuring low extruder gear resistance during rapid high-speed retractions and loads.
• Precision Inner Diameter: Engineered to tight inner diameter tolerances (2 mm ID / 4 mm OD) to keep filament strands centered, preventing flexible materials (like TPU) from buckling and rigid materials from dragging.
• Quick-Release Pneumatic Fittings: Equipped with push-to-connect pneumatic collets on the input ports and output connector for rapid maintenance, tube cleaning, or clog clearance.
• Kink-Resistant Harness Shielding: Features protective external bundling or strain-relief sleeves to keep the tube array flexible and organized above the printer gantry without interfering with print head movements.

Specifications:

• Printer Compatibility: Flashforge AD5X
• Configuration: 4 Inputs / 1 Unified Output
• Tube Standard: Standard 4 mm Outer Diameter (OD) / 2 mm Inner Diameter (ID) PTFEInterface Connectors: Quick-connect pneumatic push fittings
• Compatible Filaments: PLA, PETG, ABS, ASA, TPU, PVA, Filament Blends
